8 out of 10 Archicad users say this tool matters.

⚠️ Important: To use Zone Overall Dimensions at full capacity, you must install the free Accessories Add-On for your version of Archicad.


📌 Choose the version matching your Archicad: 25 | 26 | 27 | 28 | 29

This tool allows you to quickly apply the “Zone Overall Dimensions” stamp across your selected zones:
Select the zones where you want to apply the stamp using the designated shortcut.

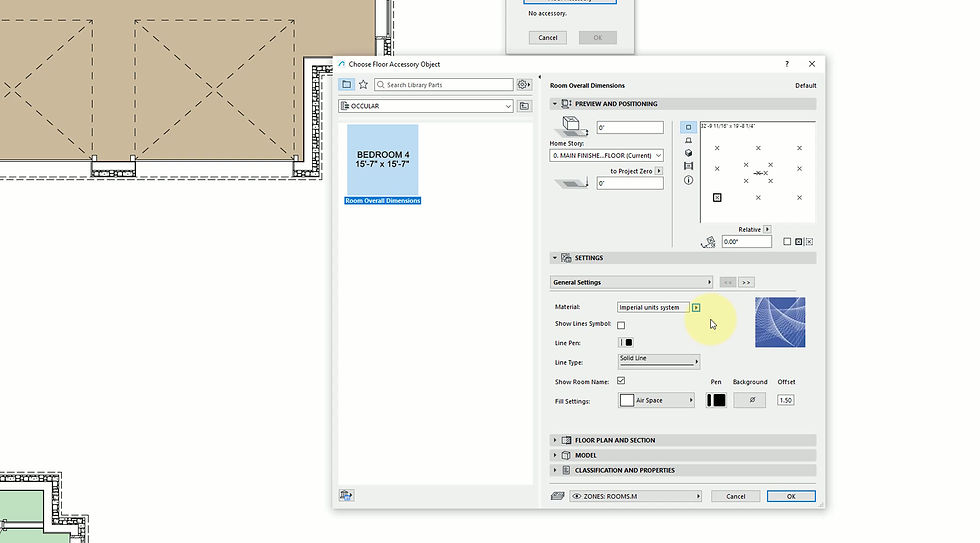

Choose the Floor Accessory from the Accessory add-on options and assign it to the correct layer for organized control and visibility.

Switch measurement units between Imperial and Metric if needed.

Ensure alignment with the zone’s story for accurate placement.

Confirm placement, and the stamp will be applied to all selected zones.

After placement, reposition the stamp individually or in a line according to your design preference.

⚠️When using -Add wall recess to zones settings, zone geometry includes door and window recesses. The object remains functional, but manual hotspot adjustments may be needed to fine-tune the overall dimensions.


Note: Measurements are automatically rounded to the nearest centimeter (metric) or inch (imperial) for a clean, professional appearance.
